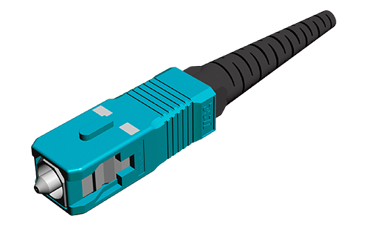

17259, Kit, SC 3.0mm, Multimode, Aqua Housing, Black Boot

Features

  • Industry leading IL: <0.15dB random intermate @ >97% of channels
  • One piece tunable connector body
  • Pre-radiused ferrule endface

Applications

  • Central office applications
  • FTTx fiber distribution hubs
  • Standards Compliance IEC-61754-4
  • Standards Compliance TIA-604-3

Specifications

Part Number
17259
Brand
ELiMENT® Single Fiber
Type
Plug
Style
SC
Performance
Low-loss
Fiber Type
Multimode
Fiber Count
1x1
Polish Type
PC
Housing Color
Aqua
Boot Color
Black
Heat Shrink Color
No Heat Shrink
Cable Style
2.0mm, 2.5mm, 3.0mm
Cable Exit Type
Standard Boot
Insertion Extraction
Push Pull

Downloads

Videos

Kit Bill of Materials

Component Part Number
Description
Drawing
Component Part Number
17256
Description
Crimp Band_SC_3.0 mm
Drawing
Component Part Number
17351
Description
Boot_SC_3.0 mm_Black_NL
Drawing
Component Part Number
17331
Description
Assy_SC_MM_InnerHsg__Aqua
Drawing
