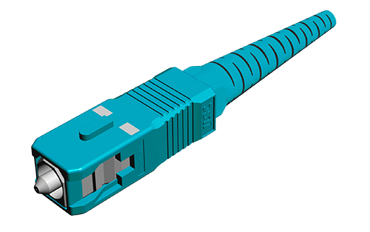

17362, Kit, SC 2.0mm, Multimode, Aqua Housing, Aqua Boot

Features

  • Industry leading IL: <0.15dB random intermate @ >97% of channels
  • One piece tunable connector body
  • Pre-radiused ferrule endface

Applications

  • Central office applications
  • FTTx fiber distribution hubs
  • Standards Compliance IEC-61754-4
  • Standards Compliance TIA-604-3

Specifications

Part Number
17362
Brand
ELiMENT™ Single Fiber
Type
Plug
Style
SC
Performance
Low-loss
Fiber Type
Multimode
Fiber Count
1x1
Polish Type
PC
Housing Color
Aqua
Boot Color
Aqua
Cable Style
2.0 mm Round
Cable Exit Type
Standard Boot
Insertion Extraction
Push Pull

Downloads

Videos

Kit Bill of Materials

Component Part Number
Description
Drawing
Component Part Number
17255
Description
Crimp Band_SC_2.0 mm
Drawing
Component Part Number
17347
Description
Boot_SC_2.0 mm_Aqua_NL
Drawing
Component Part Number
17331
Description
Assy_MM_InnerHsg__Aqua
Drawing
