Features
- Elliptical guide pin tip to minimize ferrule debris
- Exceeds TIA and IEC dimensional requirements for optimal performance
- Floating ferrule design ensures fiber contact integrity
- Removable housing for interferometry and rework
Applications
- Aggregation of SR4 & PSM4 links
- Array fiber to single fiber breakouts and cassettes
- High density array trunk cables
- Parallel optic patch cables SR-8, SR-16, PSM8
- Qualified to TIA-568.3-D
- Standards Compliance IEC 61754-7-3; 61754-7-4
- Standards Compliance TIA 604-18
- Structured cabling per TIA-942 & TIA-568
Specifications

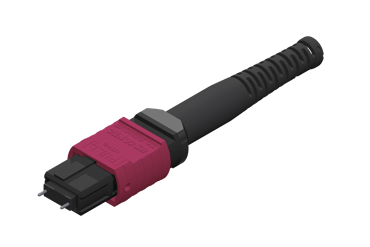

Part Number
21357
Brand
MTP®-16
Type
Plug
Plug Performance
Standard
Key Orientation
Offset - TIA 604-18
Fiber Type
Multimode
Gender
Male
Spring Force
20N
Fiber Count
1x16, 2x16
Housing Color
Magenta
Cable Style
3.0 mm
Operating Environment
Controlled
Cable Exit Type
MTP® Flex Boot 3.0mm and 3.6 m
Style
MPO 16
