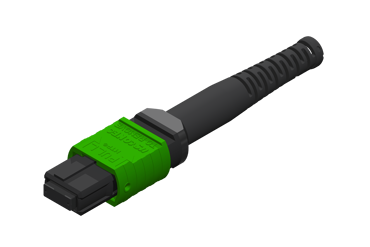

21362, Kit MTP®-16 3.0 MM Round, Female Single-mode, Flex Boot, Green Housing, 20N Spring Force

Features

  • Elliptical guide pin tip to minimize ferrule debris
  • Exceeds TIA and IEC dimensional requirements for optimal performance
  • Floating ferrule design ensures fiber contact integrity
  • Removable housing for interferometry and rework

Applications

  • Aggregation of SR4 & PSM4 links
  • Array fiber to single fiber breakouts and cassettes
  • High density array trunk cables
  • Parallel optic patch cables SR-8, SR-16, PSM8
  • Qualified to TIA-568.3-D
  • Standards Compliance IEC 61754-7-3; 61754-7-4
  • Standards Compliance TIA 604-18
  • Structured cabling per TIA-942 & TIA-568

Specifications

Part Number
21362
Brand
MTP®-16
Type
Plug
Plug Performance
Standard
Key Orientation
Offset - TIA 604-18
Fiber Type
Single-mode
Gender
Female
Spring Force
20N
Fiber Count
1x16, 2x16
Housing Color
Green
Cable Style
3.0 mm
Operating Environment
Controlled
Cable Exit Type
MTP® Flex Boot 3.0mm and 3.6 m
Style
MPO 16

Downloads

Videos

Kit Bill of Materials

Component Part Number
Description
Drawing
Component Part Number
15960
Description
Boot_Black_MTP®_3.0 mm_FLEX
Drawing
Component Part Number
15633
Description
Crimp Band_MTP®_3.0 mm
Drawing
Component Part Number
19692
Description
Spring Push_Universal_3.0mm
Drawing
Component Part Number
22515
Description
Spring_MTP® Univ._20N_HSF
Drawing
Component Part Number
15391
Description
Spacer_Pin_Female_16F Ferrule
Drawing
Component Part Number
19068
Description
Hsg_MTP®-16_Green
Drawing
Component Part Number
17242
Description
Dust Cap_MTP®
Drawing
