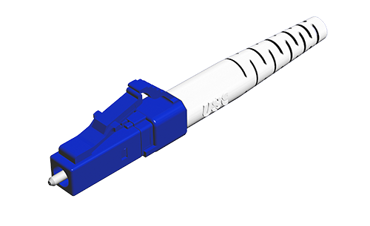

17305, Kit, LC 2.0mm, Single-mode, Blue Housing, White Boot, White Heatshrink Assembly

Features

  • Flat ferrule endface
  • Industry leading IL: <0.15dB random intermate @ >97% of channels
  • One piece tunable connector body

Applications

  • Data center cabling / patch cords
  • FTTx fiber distribution hubs
  • High density central office applications
  • Standards Compliance IEC-61754-20
  • Standards Compliance TIA-604-10

Specifications

Part Number
17305
Brand
ELiMENT™ Single Fiber
Type
Plug
Style
LC
Performance
Low-loss
Fiber Type
Single-mode
Fiber Count
1x1
Polish Type
PC
Housing Color
Blue
Boot Color
White
Heat Shrink Color
White
Cable Style
2.0 mm Round
Cable Exit Type
Standard Boot
Insertion Extraction
Latch Release

Downloads

Videos

Kit Bill of Materials

Component Part Number
Description
Drawing
Component Part Number
17212
Description
Hsg Assy_LC_SM_2.0_Blue_W/Cap
Drawing
Component Part Number
17221
Description
Heat Shk/Crimp Band Assy_White
Drawing
Component Part Number
17216
Description
Boot_LC_2.0 mm_White_USC
Drawing
