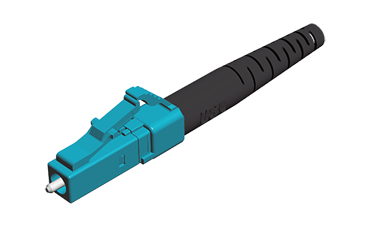

17224, Kit, LC 2.0mm, Multimode, Aqua Housing, Black Boot, White Heatshrink Assembly

Features

  • Flat ferrule endface
  • Industry leading IL: <0.15dB random intermate @ >97% of channels
  • One piece tunable connector body

Applications

  • Data center cabling / patch cords
  • FTTx fiber distribution hubs
  • High density central office applications
  • Standards Compliance IEC-61754-20
  • Standards Compliance TIA-604-10

Specifications

Part Number
17224
Brand
ELiMENT™ Single Fiber
Type
Plug
Style
LC
Performance
Low-loss
Fiber Type
Multimode
Fiber Count
1x1
Polish Type
PC
Housing Color
Aqua
Boot Color
Black
Heat Shrink Color
White
Cable Style
2.0 mm Round
Cable Exit Type
Standard Boot
Insertion Extraction
Latch Release

Downloads

Videos

Kit Bill of Materials

Component Part Number
Description
Drawing
Component Part Number
17211
Description
Hsg Assy_LC_MM_2.0_Aqua_W/Cap
Drawing
Component Part Number
17221
Description
Heat Shk/Crimp Band Assy_White
Drawing
Component Part Number
17217
Description
Boot_LC_2.0 mm_Black_USC
Drawing
